StopTech Balanced Big Brake Kit
StopTech Big Brake Kits rank among the world's best high-performance brake upgrade systems. Increased heat capacity from large, 2-piece AeroRotors allows braking harder, stop after stop, with reduced chance of fade. StopTech ST series calipers, which feature patented stiffening bridges and braided stainless-steel brake hoses, reduce system compliance, providing a firmer and more consistent pedal feel.
StopTech has mastered the engineering of increasing heat capacity and reducing compliance without upsetting the Mustang's stock front-to-rear brake torque ratio. The company developed its proprietary Balanced Brake Upgrade design philosophy, which precisely splits the front and rear braking proportions while considering vehicle weight transfer during braking. Optimal brake balance is achieved by using caliper piston sizes specifically chosen for each Mustang application.

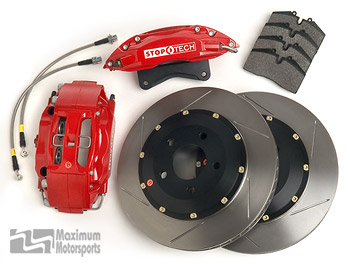

StopTech Big Brake Kits include forged, 2-piece ST calipers; large 2-piece AeroRotors; stainless-steel brake lines, brake pads, and application-specific caliper brackets.
ST-60 Caliper
- Made of forged aluminum.
- Unique bolt-in bridge greatly stiffens the caliper, improving pedal feel and modulation.
- 6-piston differential bore design distributes the clamping force over the length of each pad evenly, improving braking ability and pad life.
- Pistons are hard-anodized aluminum.
- Piston dust boots are included.
- Anodized for protection before being painted for color.
- ST-60 caliper weighs 8.8 lbs.
AeroRotors
- 15" (380mm)diameter
- 1.25" (32mm) thick rotors are thicker than stock, increasing thermal capacity.
- 2-piece, full-floating design allows the disc to float in both axial and radial directions. Belling of the cast-iron rotor is lessened, which reduces stress cracking.
- Curved vanes with unique leading and trailing edges increase airflow through the rotor by 80% over straight-vane rotors and by 30% over other curved-vane rotors. The result is a cooler rotor, which improves brake performance.
- StopTech's unique AeroHat directs air to the outer face of the rotor. This reduces the always present temperature differential between the inner and outer rotor faces, decreasing the outer pad's wear and reducing rotor cracking.
- Black-anodized aluminum AeroHat minimizes transfer of heat into the wheel hub and bearings.
- 15" rotor and hat assembly weighs 21.2 lb.
Rotor options
Available in 4 versions: slotted with plain finish, slotted with plating, drilled with plain finish, drilled with plating.
- Slotted rotors vent hot gasses created between the pad and rotor during heavy braking, improving pad bite and longevity. Slotted rotors are recommended for Mustangs that may be track driven.
- Drilled rotors provide a unique look and are well-suited for street driving. Good for use in rain, but not recommended for track use due to likelihood of cracking from extreme heat.
- Both slotted and drilled rotors are available with zinc plating to resist corrosion, providing better heat dissipation over time and better appearance. Plain, un-plated rotors are less expensive.
Hoses
- Braided stainless-steel hoses provide quicker response, firmer pedal feel, and easier brake modulation.
- DOT-compliant hoses feature a unique swiveling end that ensures correct alignment and fitment to the chassis hard line. StopTech manufactures these stainless-steel braided PTFE-lined brake hose assemblies.
Pads
Fits
- 2007-20014 GT500
- 2012-2014 Mustang GT with Ford's Brembo brake option
